Horizontal centrifugal pump - EKN

Horizontal centrifugal pump, Clean fluid closed impeller EKN

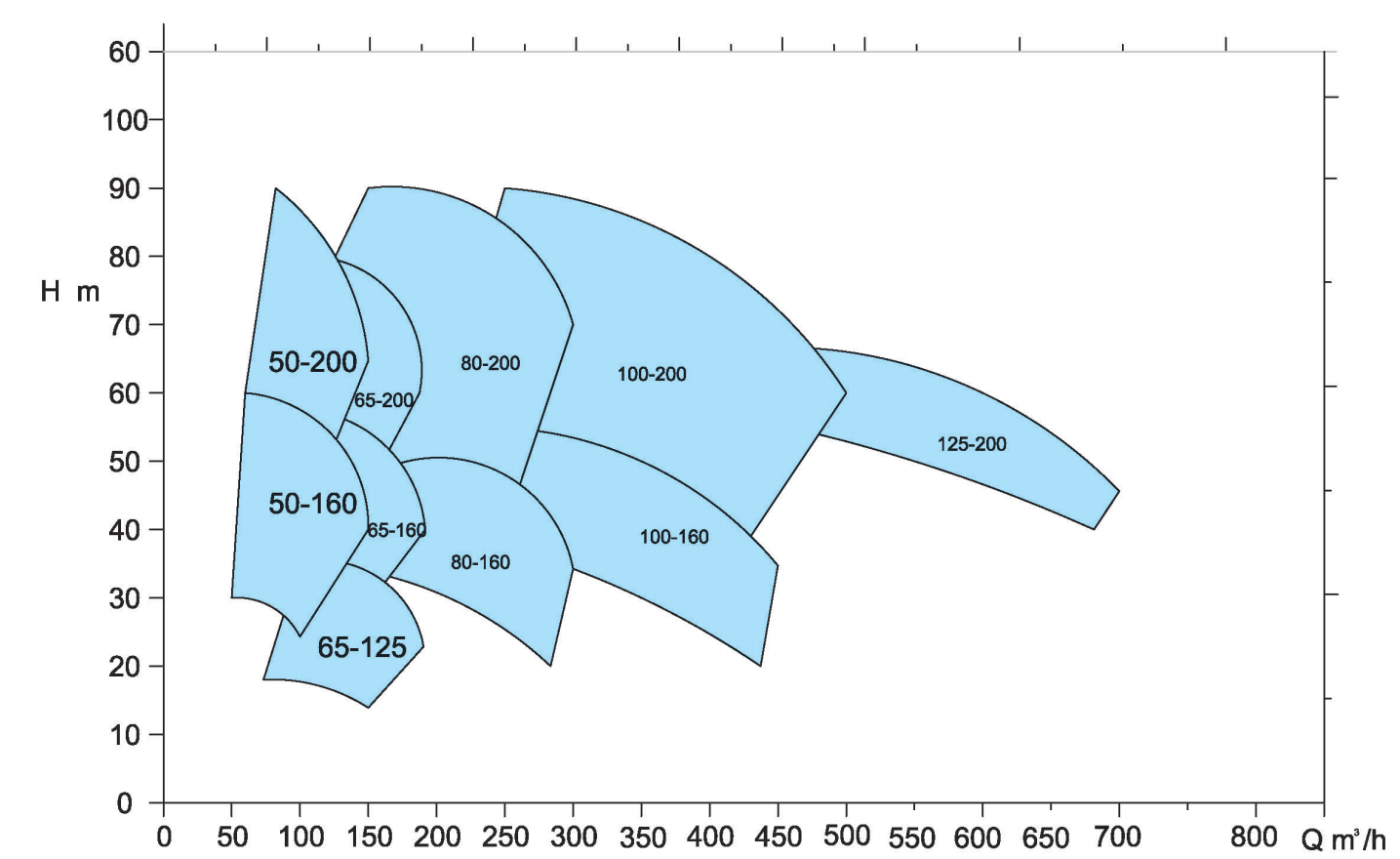

Size: DN 32 ÷ 150

Flow rate: Q up to 550 m3/h

Pressure head: H up to 100 m

EN733 (DIN 24255)

Cetificates: 2009/125/CE, ATEX

Temperature: t up to 160  ̊C

Maximum pressure: p up to 16 bar

Speed: n

  • 50 Hz: 2900, 1450 min-1
  • 60 Hz: 3500, 1750 min-1



Certificado Atex
More information
.

Centrifugal pump OH1 in accordance with EN 733 (DIN 24255), closed impeller. Shaft seal with mechanical seal or packing. Pump construction using those materials most suitable for the fluid to be pumped.

For clean liquids without solid or abrasive components. For heating services, air conditioning, cooling, agriculture, urban water supplies, circulation, sea water, fire-fighting sets and other general applications.
